A22[]

Knob-type Selector Switch (Cylindrical 22/25-dia.)

A22[]

Install in 22-dia. or 25-dia. Panel Cutout

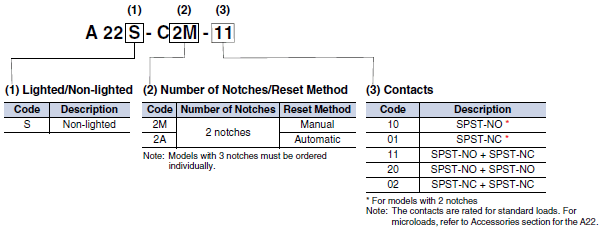

Model Number Structure

Model Number Legend

Shipped as a set which includes the Selector and Switch.

A22[] Lineup 2

Ordering Information

Subassembled

The Selector or Switch can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

Selectors

Non-lighted (Color: Only Black is Available)

Sealing IP65 (oil-resistant)
Appearance Long lever
1109_lu_5_2
Notches Reset method Model
2 notches Manual 1109_lu_5_3 A22S-C2M
Automatic 1109_lu_5_4 A22S-C2A
3 notches Manual 1109_lu_5_5 A22S-C3M
Automatic 1109_lu_5_6 A22S-C3A

Switches (Standard Load)

Appearance Non-lighted
1109_lu_7_1
Contacts Model
SPST-NO A22-10M
SPST-NC A22-01M
SPST-NO + SPST-NC A22-11M
SPST-NO + SPST-NO A22-20M
SPST-NC + SPST-NC A22-02M
