Temperature Indicator
last update: July 11, 2019
Power supply voltage | 100 to 240 VAC (50/60 Hz), 24 VAC/VDC, DeviceNet power supply: 24 VDC | |
---|---|---|
Allowable power supply voltage
range |
85% to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25
VDC |
|
Power consumption *1 | 100 to 240 V: 18 VA max. (max. load)
24 VAC/DC: 11 VA/7 W max. (max. load) |
|
Current consumption | DeviceNet power supply: 50 mA max. (24 VDC) | |

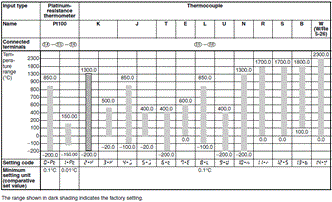

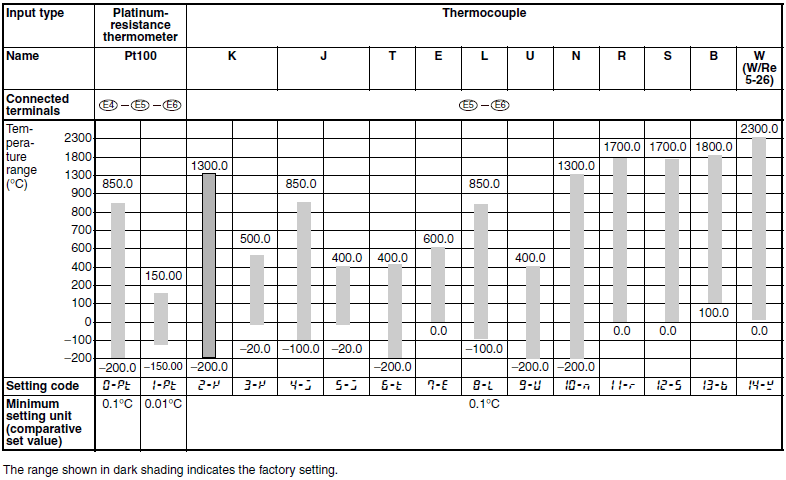

Input | Platinum-resistance thermometer: Pt100
Thermocouple: K, J, T, E, L, U, N, R, S, B, W |
|
A/D conversion method | Delta-Sigma method | |
External power supply | See Sensor Power Supply/Output Type Codes | |
Event
inputs *2 |
Timing input | NPN open collector or no-voltage contact signal
ON residual voltage: 3 V max. ON current at 0Ω: 17 mA max. Max. applied voltage: 30 VDC max. OFF leakage current: 1.5 mA max. |
Startup compensation
timer input |
NPN open collector or no-voltage contact signal
ON residual voltage: 2 V max. ON current at 0Ω: 4 mA max. Max. applied voltage: 30 VDC max. OFF leakage current: 0.1 mA max. |
|
Hold input | ||
Reset input | ||
Bank input | ||
Output
ratings (depends on the model) |
Relay output | 250 VAC, 30 VDC, 5 A (resistive load)
Mechanical life expectancy: 5,000,000 operations, Electrical life expectancy: 100,000 operations |
Transistor output | Maximum load voltage: 24 VDC, Maximum load current: 50 mA, Leakage current:
100μ A max. |
|
Linear output | Linear output 0 to 20 mA DC, 4 to 20 mA DC:
Load: 500Ω max, Resolution: Approx. 10,000, Output error: ±0.5% FS Linear output 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC: Load: 5 kΩ max, Resolution: Approx. 10,000, Output error: ±0.5% FS (1 V or less: ±0.15 V; not output for 0 V or less) |
|
Display method | Negative LCD (backlit LED) display
7-segment digital display (Character height: PV: 14.2 mm (green/red); SV: 4.9 mm (green) |
|
Main functions | Temperature input shift, measurement operation selection, averaging, previous
average value comparison, zero-limit, output hysteresis, output OFF delay, output test, display value selection, display color selection, key protection, bank selection, display refresh period, maximum/minimum hold, reset |
|
Ambient operating temperature | - 10 to 55 °C (with no icing or condensation) | |
Ambient operating humidity | 25% to 85% | |
Storage temperature | -25 to 65 °C (with no icing or condensation) | |
Altitude | 2,000 m max. | |
Accessories | Watertight packing, 2 fixtures, terminal cover, unit stickers, instruction manual.
DeviceNet models also include a DeviceNet connector (Hirose HR31-5.08P-5SC (01)) and crimp terminals (Hirose HR31-SC-121) *3 |

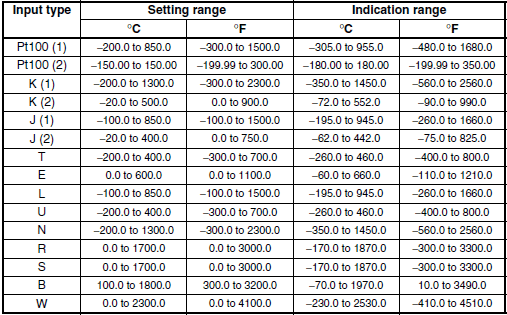

Display range | -19,999 to 99,999 | |
---|---|---|
Accuracy (at 23±5°C) | Thermocouple input: (±0.3% PV or ±1°C, whichever is larger) ± 1 digit max. *
Platinum resistance thermometer input: (±0.2% PV or ±0.8°C, whichever is larger) ± 1 digit max. |
|
Sampling period | 20 ms (50 times/second) | |
Comparative output
response time |
Platinum-resistance thermometer input range: 120 ms max.
Thermocouple input range: 180 ms max. (The time until the comparative output is output when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) |
|
Linear output
response time |
Platinum-resistance thermometer input range: 170 ms max.
Thermocouple input range: 230 ms max. (The time until the final analog output is reached when there is a forced sudden change in the output signal from 15% to 95% or 95% to 15%.) |
|
Insulation resistance | 20 MΩ min. (at 500 VDC) | |
Dielectric strength | 2,300 VAC for 1 min between external terminals and case | |
Noise immunity | 100 to 240 VAC models: ±1,500 V at power supply terminals in normal or common mode
(waveform with 1-ns rising edge and pulse width of 1 μs/100 ns) 24 VAC/VDC models: ±1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 μs/100 ns) |
|
Vibration resistance | Frequency: 10 to 55 Hz; Acceleration: 50 m/s2, 10 sweeps of 5 min each in X, Y, and Z directions | |
Shock resistance | 150 m/s2 (100 m/s2 for relay outputs) 3 times each in 3 axes, 6 directions | |
Weight | Approx. 300 g (Base Unit only) | |
Degree of
protection |
Front panel | Conforms to NEMA 4X for indoor use (equivalent to IP66) |
Rear case | IP20 | |
Terminals | IP00 + finger protection (VDE0106/100) | |
Memory protection | EEPROM (non-volatile memory)
Number of rewrites: 100,000 |
|
Applicable standards | UL61010-1, CSA C22.2 No. 61010-1-04
EN61010-1 (IEC61010-1): Pollution degree 2/Overvoltage category II EN61326-1 |
|
EMC | EMI: EN61326-1 Industrial electromagnetic environment
Electromagnetic radiation interference: CISPR 11 Group 1, Class A Terminal interference voltage: CISPR 11 Group 1, Class A EMS: EN61326-1 Industrial electromagnetic environment Electrostatic Discharge Immunity: EN61000-4-2: 4 kV (contact), 8 kV (in air) Radiated Electromagnetic Field Immunity: EN61000-4-3: 10 V/m 1 kHz sine wave amplitude modulation (80 MHz to 1 GHz, 1.4 to 2 GHz) Electrical Fast Transient/Burst Immunity: EN61000-4-4: 2 kV (power line), 1 kV (I/O signal line) Surge Immunity: EN61000-4-5: 1 kV with line (power line), 2 kV with ground (power line) Conducted Disturbance Immunity: EN61000-4-6: 3 V (0.15 to 80 MHz) Power Frequency Magnetic Immunity: EN61000-4-8: 30 A/m (50 Hz) continuous time Voltage Dips and Interruptions Immunity: EN61000-4-11: 0.5 cycle, 0°/180°, 100% (rated voltage) |
Input type | S-TMR, HOLD, RESET, BANK1, BANK2, BANK4 | TIMING |
---|---|---|
Contact | ON: 1 kΩ max., OFF: 100 kΩ min. | --- |
No-contact | ON residual voltage: 2 V max.
OFF leakage current: 0.1 mA max. Load current: 4 mA max. Maximum applied voltage: 30 VDC max. |
ON residual voltage: 3 V max.
OFF leakage current: 1.5 mA max. Load current: 17 mA max. Maximum applied voltage: 30 VDC max. |
Item | Resistive loads
(250 VAC, cosφ=1; 30 VDC, L/R=0 ms) |
Inductive loads
(250 VAC, closed circuit, cosφ=0.4; 30 VDC, L/R=7 ms) |
---|---|---|
Rated load | 5 A at 250 VAC
5 A at 30 VDC |
1 A at 250 VAC
1 A at 30 VDC |
Mechanical life expectancy | 5,000,000 operations | |
Electrical life expectancy | 100,000 operations |
Maximum load voltage | 24 VDC |
---|---|
Maximum load current | 50 mA |
Leakage current | 100 μA max. |
Item | 0 to 20 mA | 4 to 20 mA | 0 to 5 V | 1 to 5 V | 0 to 10 V |
---|---|---|---|---|---|
Allowable load impedance | 500 Ω max. | 5 kΩ min. | |||
Resolution | Approx. 10,000 | ||||
Output error | ±0.5%FS | ±0.5%FS (1 V or less: ±0.15 V; not output for 0 V or less) |
Item | RS-232C, RS-485 |
---|---|
Communications method | Half duplex |
Synchronization method | Start-stop synchronization |
Baud rate | 9,600, 19,200, or 38,400 bps |
Transmission code | ASCII |
Data length | 7 bits or 8 bits |
Stop bit length | 2 bits or 1 bit |
Error detection | Vertical parity and FCS |
Parity check | Odd, even |
I/O signal name | Item | Rating | ||
---|---|---|---|---|
Inputs | REQUEST
HOLD MAX MIN RESET |
Input signal | No-voltage contact input | |
Input current for no-voltage input | 10 mA | |||
Signal level | ON voltage | 1.5 V max. | ||
OFF voltage | 3 V min. | |||
Outputs | DATA
POLARITY OVER DATA VALID RUN |
Maximum load voltage | 24 VDC | |
Maximum load current | 10 mA | |||
Leakage current | 100 μA max. | |||
HH
H PASS L LL |
Maximum load voltage | 24 VDC | ||
Maximum load current | 50 mA | |||
Leakage current | 100 μA max. |
Communications protocol | Conforms to DeviceNet | ||||
---|---|---|---|---|---|
Supported
communi- cations |
Remote I/O
communications |
Master-Slave connection (polling, bit-strobe, COS, cyclic)
Conforms to DeviceNet communications standards. |
|||
I/O allocations | Allocate any I/O data using the Configurator.
Allocate any data, such as DeviceNet-specific parameters and variable area for Digital Indicators. Input area: 2 blocks, 60 words max. Output area: 1 block, 29 words max. (The first word in the area is always allocated for the Output Execution Enabled Flags.) |
||||
Message
communications |
Explicit message communications
CompoWay/F communications commands can be executed (using explicit message communications) |
||||
Connection methods | Combination of multi-drop and T-branch connections (for trunk and drop lines) | ||||
Baud rate | DeviceNet: 500, 250, or 125 Kbps (automatic follow-up) | ||||
Communications media | Special 5-wire cable (2 signal lines, 2 power supply lines, 1 shield line) | ||||
Communications distance | Baud rate | Network length
(max.) |
Drop line length
(max.) |
Total drop line
length (max.) |
|
500 Kbps | 100 m (100 m) | 6 m | 39 m | ||
250 Kbps | 100 m (250 m) | 6 m | 78 m | ||
125 Kbps | 100 m (500 m) | 6 m | 156 m | ||
The values in parentheses are for Thick Cable. | |||||
Communications power supply | 24-VDC DeviceNet power supply | ||||
Allowable voltage fluctuation
range |
11 to 25-VDC DeviceNet power supply | ||||
Current consumption | 50 mA max. (24 VDC) | ||||
Maximum number of nodes | 64 (DeviceNet Configurator is counted as one node when connected) | ||||
Maximum number of slaves | 63 | ||||
Error control checks | CRC errors | ||||
DeviceNet power supply | Supplied from DeviceNet communications connector |
