3G3RX2

High-function General-purpose Inverters

3G3RX2

Save energy and maximize performance with versatile inverter

(Unit: mm)

Inverter 3G3RX2

3G3RX2-A2004
3G3RX2-A2007
3G3RX2-A2015
3G3RX2-A2022
3G3RX2-A2037
3G3RX2-A4007
3G3RX2-A4015
3G3RX2-A4022
3G3RX2-A4037

3G3RX2 Dimensions 2

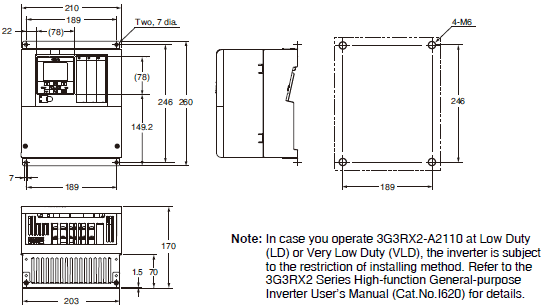

3G3RX2-A2055
3G3RX2-A2075
3G3RX2-A2110
3G3RX2-A4055
3G3RX2-A4075
3G3RX2-A4110

3G3RX2 Dimensions 3

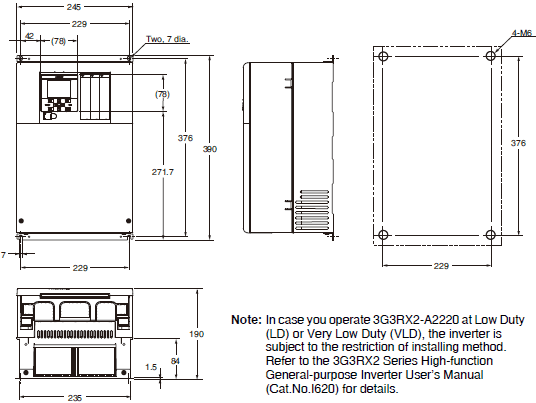

3G3RX2-A2150
3G3RX2-A2185
3G3RX2-A2220
3G3RX2-A4150
3G3RX2-A4185
3G3RX2-A4220

3G3RX2 Dimensions 4

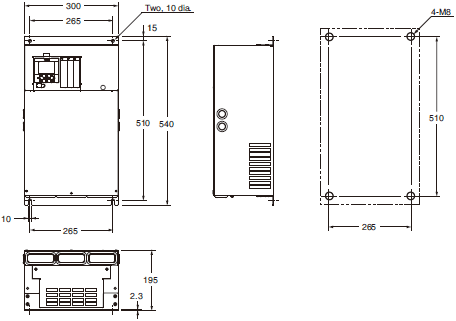

3G3RX2-A2300
3G3RX2-A4300

3G3RX2 Dimensions 5

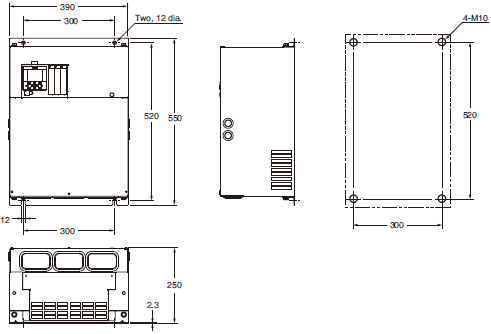

3G3RX2-A2370
3G3RX2-A2450
3G3RX2-A4370
3G3RX2-A4450
3G3RX2-A4550

3G3RX2 Dimensions 6

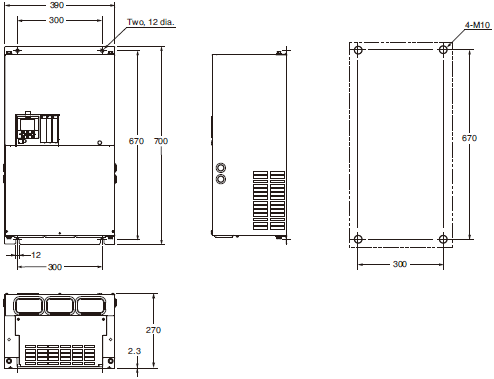

3G3RX2-A2550

3G3RX2 Dimensions 7

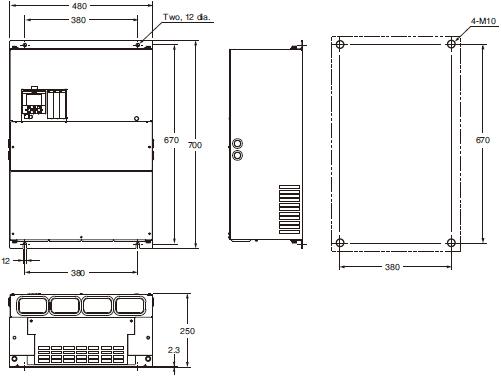

3G3RX2-B4750
3G3RX2-B4900

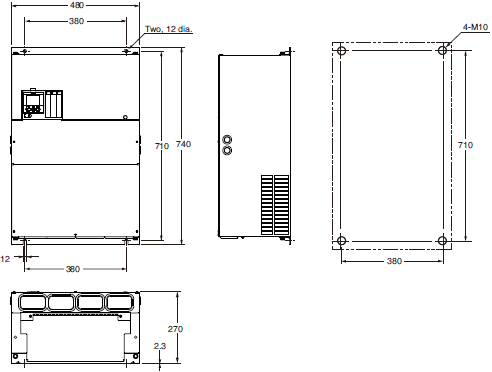

3G3RX2 Dimensions 8

3G3RX2-B411K
3G3RX2-B413K

3G3RX2 Dimensions 9

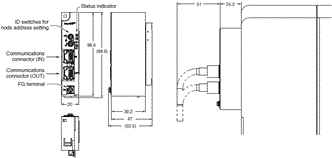

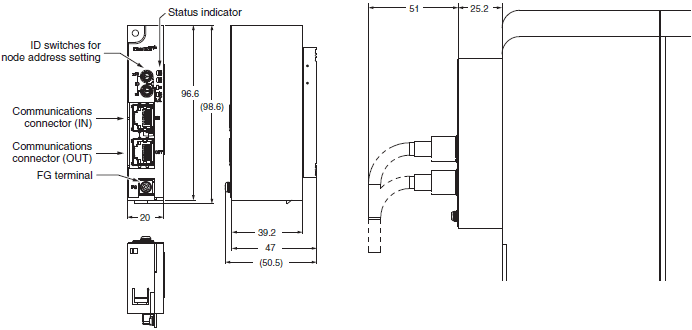

Communication Unit

3G3RX2 Dimensions 10

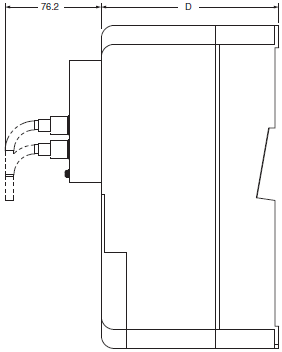

Note: For the overall depth when the EtherCAT Communication Unit is installed with an EtherCAT cable connected, add 76.2
         mm to the dimension D of the Inverter. The dimension D differs depending on its capacity of the Inverter.
         Please refer to the manual for the Inverter.

3G3RX2 Dimensions 11
