S8VK-G

Switch Mode Power Supply (15/30/60/120/240/480-W Models)

S8VK-G

Reliable and Easy Operation-Worldwide Power Supply. Resistant in tough environments. Easy and fast installation. The most compact class on the market.

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: July 1, 2016

(Unit: mm)

S8VK-G015[][] (15 W)

S8VK-G030[][] (30 W)

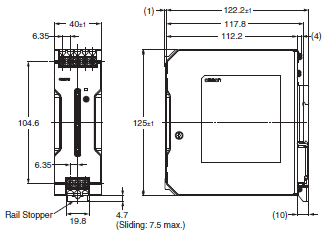

S8VK-G060[][] (60 W)

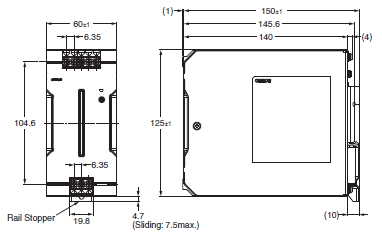

S8VK-G12024 (120 W)

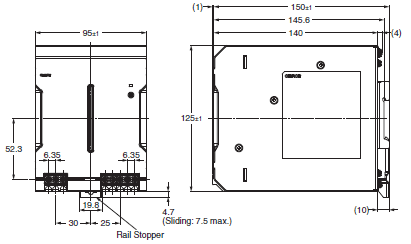

S8VK-G240[][] (240 W)

S8VK-G480[][] (480 W)

DIN Rail (Order Separately)

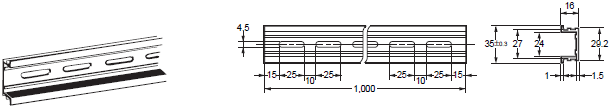

Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)
PFP-100N2

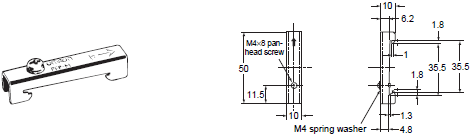

End Plate
PFP-M

Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.

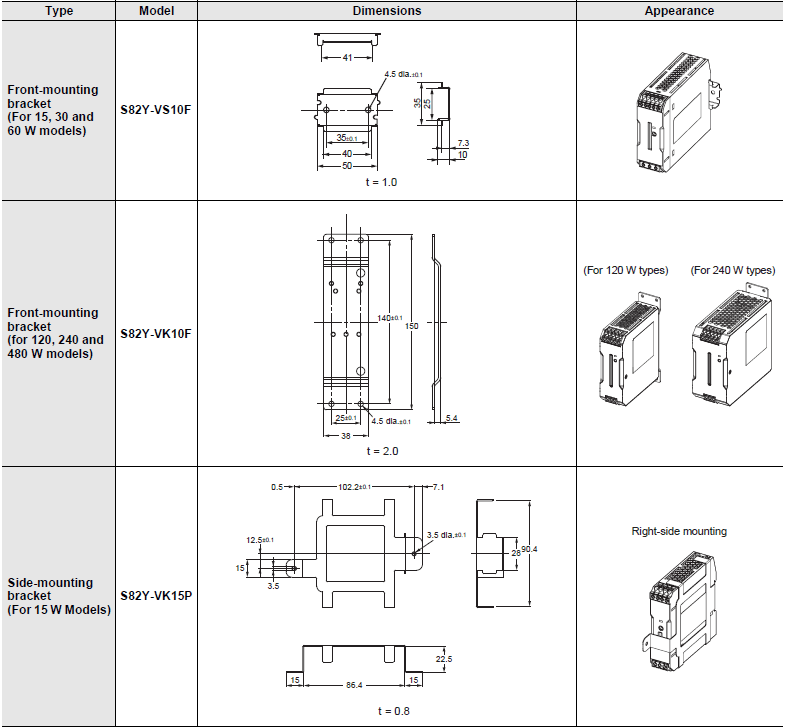

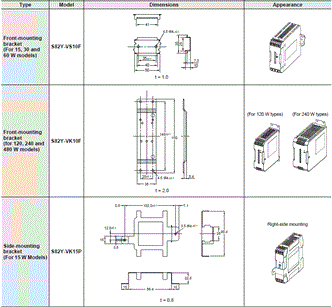

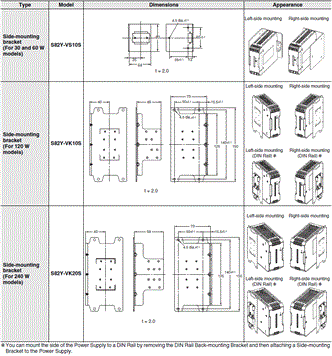

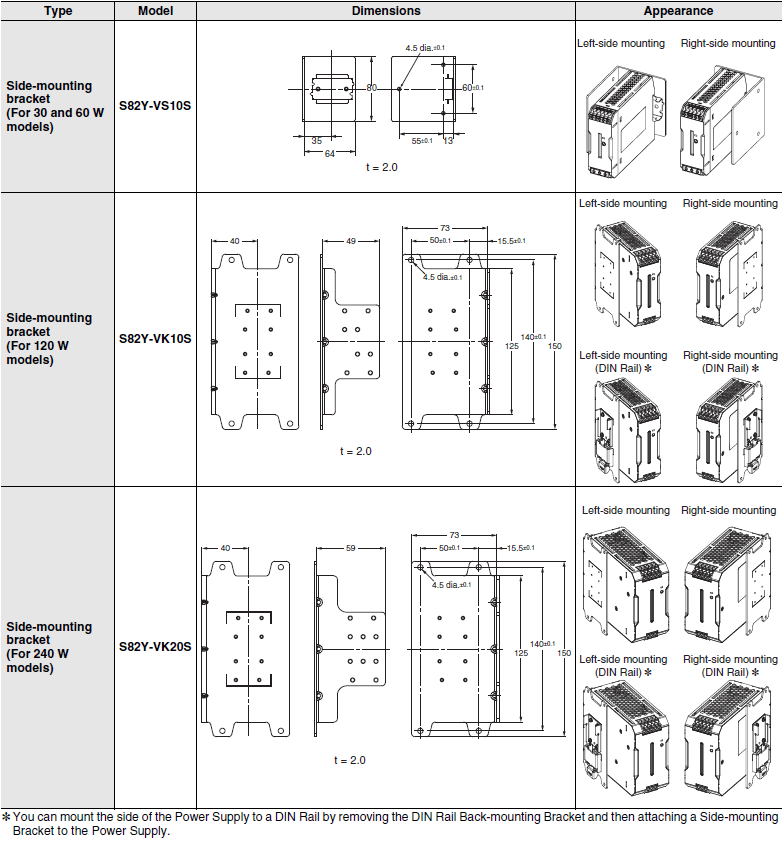

Mounting Brackets
