Solid State Relays for Heaters


Our Value Design Products Increase the Value of Your Control Panels. Single-phase SSR for low heat generation enables carrying 25 A (G3PJ-[]25B(-PU)) even for close mounting of three SSRs to contribute to downsizing of control panels. Models available with push-in input terminals.

For building green control panels

Natural disasters caused by global warming and climate change are became global social issue,
that drives over 150 countries and regions worldwide to take action toward decarbonization.Our
goal is to reduce greenhouse gas (GHG) emissions toward half by through new ways of building
control panels, that key figure of the manufacturing site.

Integrating green perspectives into Value Design

Value Design for Panel (Value Design) is the common concept shared
across OMRON’s in-panel product specifications to deliver new value to
your control panels.
This Value Design also integrate environment consideration concept
that enable earth and user-friendly control panel building.

G3PJ Features 3

Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.

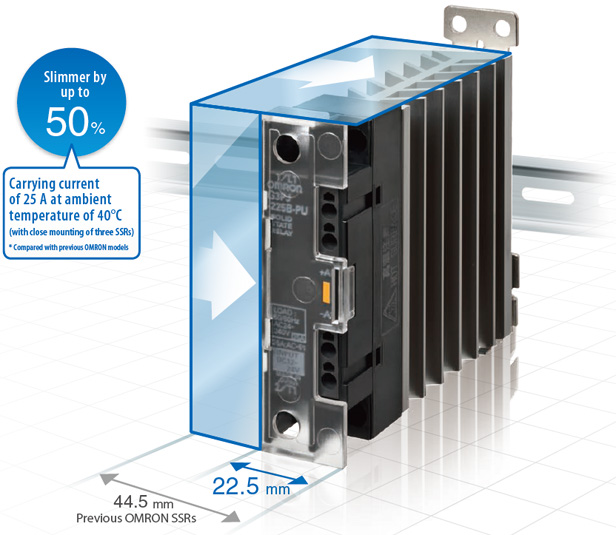

Easier Designing and Wiring While Maintaining the Previous 22.5-mm Width to Help Save Space

Close Mounting Even with this Top-class Slim Design

Size reductions in Solid State Relays mean you can downsize control panels and cooling equipment.
And close mounting helps you save even more space.

*Mounted either to DIN Tracks or with screws.

G3PJ Features 6

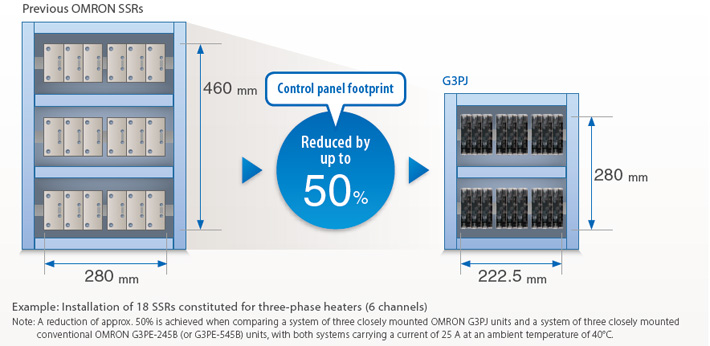

Note: A reduction of approx. 50% is achieved when comparing a system of three closely mounted OMRON G3PJ units and a system of three closely mounted conventional OMRON G3PE-245B (or G3PE-545B) units, with both systems carrying a current of 25 A at an ambient temperature of 40°C.

Control Panels That Use Many SSRs Can Be Greatly Downsized

G3PJ Features 7

Better Temperature Characteristics and Reinforced Insulation for Safety Standard Compliance

UL-listed components, so you can reduce the time required for the UL application process.

• Using new components or upgraded components is easy.
• You can procure the components even when an urgent need arises for adjustments or problem-solving.

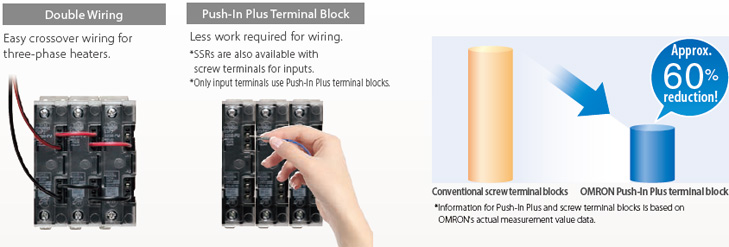

Push-In Plus Terminal Blocks for Easy Wiring

Just Insert Wires: No Tools Required
Now you can use Push-In Plus terminals to reduce the time and work involved in wiring.

G3PJ Features 9
