Discontinued On Mar. 2024

S8TS

Switch Mode Power Supply

S8TS

Block-type Switch Mode Power Supply That Mounts to DIN Rail

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

S8TS-[][][][][]

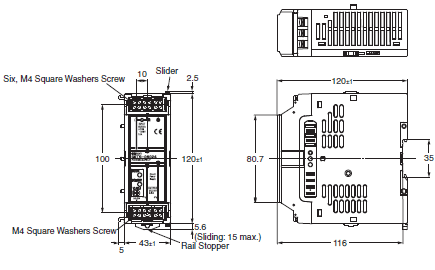

S8TS Dimensions 1

S8TS-[][][][][]F

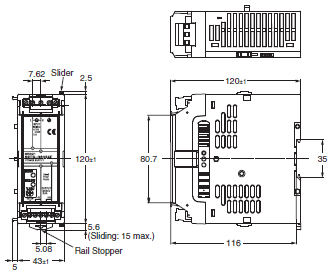

S8TS Dimensions 2

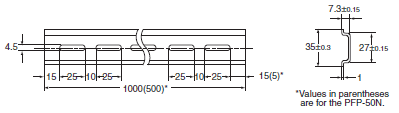

DIN Rails (Order Separately)

Mounting Rails (Material: Aluminum)

PFP-100N
PFP-50N

S8TS Dimensions 4

PFP-100N2

S8TS Dimensions 5

End Plate

PFP-M

S8TS Dimensions 6
