G3PA
Solid State Relays
Extremely Thin Relays Integrated with Heat Sinks
Related Contents
Application Solutions
last update: November 6, 2023
Model Number Structure

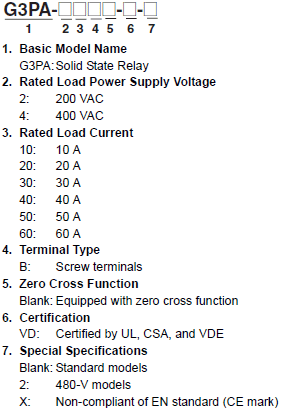

Model Number Legend
Ordering Information
List of Models
| Model | Isolation | Zero cross
function |
Indicator | Rated output load | Rated input
voltage |
|---|---|---|---|---|---|
| G3PA-210B-VD-X | Phototriac
coupler |
Yes | Yes | 10 A at 24 to 240 VAC | 5 to 24 VDC |
| G3PA-220B-VD-X | 20 A at 24 to 240 VAC | ||||
| G3PA-240B-VD | 40 A at 24 to 240 VAC | ||||
| G3PA-260B-VD | 60 A at 24 to 240 VAC | ||||
| G3PA-420B-VD | 20 A at 200 to 400 VAC | 12 to 24 VDC | |||
| G3PA-430B-VD | 30 A at 200 to 400 VAC | ||||
| G3PA-420B-VD-2 | 20 A at 200 to 480 VAC | ||||
| G3PA-430B-VD-2 | 30 A at 200 to 480 VAC | ||||
| G3PA-450B-VD-2 | 50 A at 200 to 480 VAC |
Note: When ordering, specify the rated input voltage.
Replacement Parts
| Name | Carry
current |
Load voltage
range |
Model | Applicable SSR | VDE
certification |
|---|---|---|---|---|---|
| Power Device
Cartridge |
10 A | 19 to 264 VAC | G32A-A10-VD-X DC5-24 | G3PA-210B-VD DC5-24
G3PA-210B-VD-X DC5-24 |
Yes |
| 20 A | G32A-A20-VD-X DC5-24 | G3PA-220B-VD DC5-24
G3PA-220B-VD-X DC5-24 |
|||
| 40 A | G32A-A40-VD DC5-24 | G3PA-240B-VD DC5-24 | |||
| 60 A | G32A-A60-VD DC5-24 | G3PA-260B-VD DC5-24 | |||
| 20 A | 180 to 440 VAC | G32A-A420-VD DC12-24 | G3PA-420B-VD DC12-24 | ||
| 30 A | G32A-A430-VD DC12-24 | G3PA-430B-VD DC12-24 | |||
| 20 A | 180 to 528 VAC | G32A-A420-VD-2 DC12-24 | G3PA-420B-VD-2 DC12-24 | ||
| 30 A | G32A-A430-VD-2 DC12-24 | G3PA-430B-VD-2 DC12-24 | |||
| 50 A | G32A-A450-VD-2 DC12-24 | G3PA-450B-VD-2 DC12-24 |
Other Units (Order Separately)
Units that Enable 2-line Switching of 3-phase Power
| Name | Current flow | Model | Applicable SSR |
|---|---|---|---|
| Short-circuit Unit | 10 A | G32A-D20 | G3PA-210B-VD-X |
| 20 A | G3PA-220B-VD-X, G3PA-420B-VD,
G3PA-420B-VD-2 |
||
| 30 A | G32A-D40 | G3PA-430B-VD, G3PA-430B-VD-2 | |
| 40 A | G3PA-240B-VD |
Note: Refer to List of Certified Models for a list of products that comply with safety standards.
