• Safe solution
• Global standard UVC Lamp used
• Natural-feature navigation: Automatically plans routes to prevent collisions
• Easy deployment: Short installation time and no facility modifications
| Appearance | Product Name | Part Number |

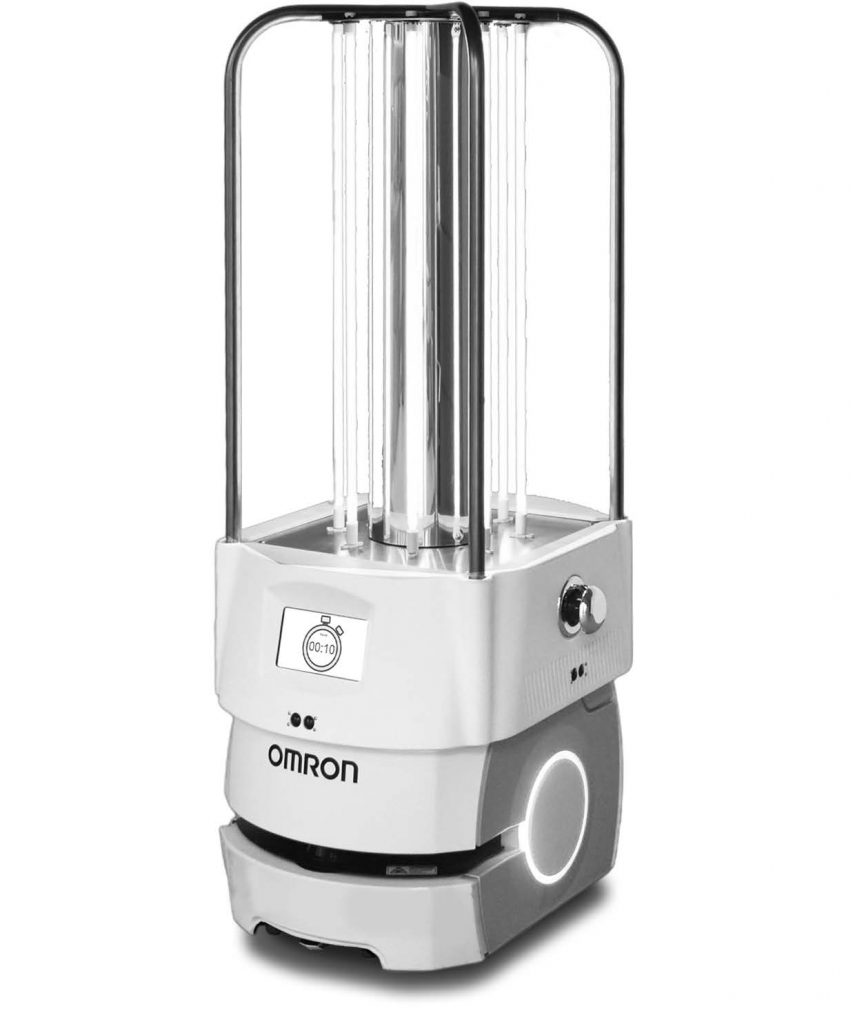

 | LD UVC | KIT000001P* |
 | Battery | 20452-000 |
 | UVC Dose Indicator (Pack of 10) | 3P0001246P |
*No Battery included
| UVC Top | |
| UVC Lamp Model | TRSP023 |
| Number of Individual Lamps | 8 x 33 inch |
| Individual Lamp Wattage | 40W |
| Rated Life | 10,000 hrs |
| Pre-Programmed Cycle | 3 pre-programmed disinfection cycle times |
UV Exposure (μJ/cm²) at Specified Distances
| Time/radius | 609mm | 914mm | 1524mm | 3048mm |
| 1 min | 124,000 | 65,000 | 24,000 | 6,000 |
| 15 min | 1,860,000 | 975,000 | 360,000 | 90,000 |
| 30 min | 3,720,000 | 1,950,000 | 720,000 | 180,000 |
| 45 min | 5,580,000 | 2,925,000 | 1,080,000 | 270,000 |
| 1 Hour | 7,440,000 | 3,900,000 | 1,440,000 | 360,000 |
| 2 Hours | 14,880,000 | 7,800,000 | 2,880,000 | 720,000 |
The above chart is offered as a reference point, using fresh lamps and does not account for ojects physically blocking UV ray transmission.
| Drive Train | |
| Drive Wheels | 2 grey non-marking foam-filled rubber |
| Wheel diameter | 200 x 50 mm (7.9 x 2.0 in.) nominal |
| Passive Casters | 2 front, 2 rear, spring-loaded |
| Brakes | 2 (one each axle) |
| Steering | Differential |
| Battery | |
| Run-time | 15 hours for robot movement / 3.5 hours for UV operation |
| Duty cycle | 80% |
| Voltage | 22-30 VDC |
| Weight | 20 kg (44 lb) |
| Capacity | 72 Ah |
| Energy | 1.84 kWh norminal |
| Recharge time | 4 hours, approx. |
| Life span | Approximately 2000 cycles |
| Safety/Sensors | |
| Safety Scanning Laser | 1 at front of platform 200 mm (7.9 in.) height, above floor 240°, 15m range, Class 1, eye-safe PLd Safety per ISO-13849 |
| Side Lasers | Total quantity: 2 1 on the left side; 1 on the right side |
| Low Front Laser | 1 in bumber (for low lying obstacles) |
| Sonar (Each sonar is one emitter and one receiver, working together) | 2 at rear of platform, 2m range |
| Position encoders | 2 encoders (one each wheel) 2 x Hall sensors (one each wheel) |
| Analog gyroscope (Techi core) | 320°/sec max rotation |
| Bumper | 1 at front of platform |
(Click image to enlarge)

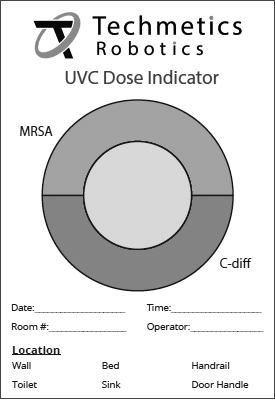

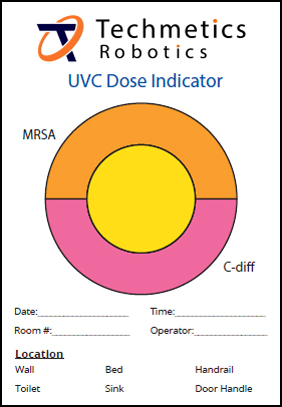

Dimensions : 60mm x 90mm
This is used to increase the efficiency of UV disinfection processes by running shorter cycle times, and providing real-time results.
Color changes at various energy levels, which correlates with a log reduction of microbiology samples (e.g. MRSA and C. difficile).
Measures specific wavelengths of UVC radiation.
Has been tested in laboratory and hospital environments in the United States, Sweden, and the United Kingdom.
