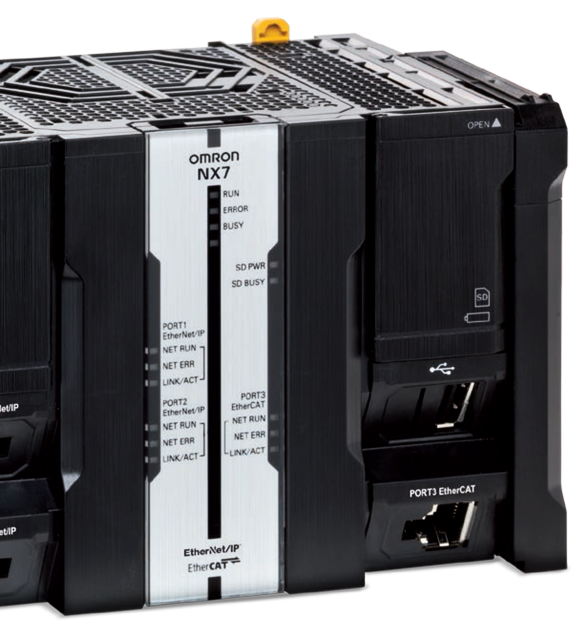

Architecture based on new Intel® CPU. The most
compact control in its class. Built-in USB port and SD Card slot.
FB library option for packing engineering (Rotary Knife, Winder/Unwinder, Temperature Control…)
♦ Servos
♦ Inverters
♦ Robotics
♦ Vision Systems
♦ Distributed I/O
♦ Integrated Safety
♦ Sensing
♦ Programming CPU
♦ Other machine controllers
♦ HMI / SCADA
♦ IT systems
♦ Standard protocols and services: TCP/IP,
FTP, NTP, SNMP, CIP protocol
♦ Database connection DB’s or Microsoft
SQL Server, Oracle, IBM DB2, MySQL
and Firebird
♦ Built-in SECS/GEM communications
functionality
Machine performance, scalability, stable operation, and productivity improvement and
quality control using data. Here is a solution to all these requirements.
Motion Control
125 μs / 8 axes
Processing Speed
0.37ns
Eternet
1Gbpsx2
Memory Capacity
260MB
Note: Performance comparison with previous OMRON products based on OMRON investigation in March 2015.
| Feature | ♦ Conforms IEC 61131-3 standards and JIS B 3503, variable-based instructions including the PLCopen® Motion function blocks ♦ Complete and robust machine automation: fast control performance and basic functions and reliability of industrial controllers |
| Benefits | ♦ Easy integration ♦ Advance control with simple programming |
